Burgmann

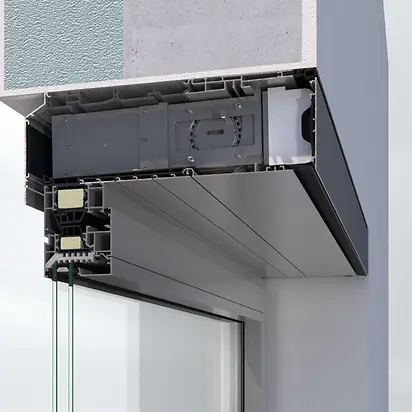

Curtain Wall VentoTherm Twist

Category

Decentralised ventilation system integrated into the window with incoming air, outgoing air and heat recovery

Description

Controlled, room-specific ventilation enables a continuous exchange of fresh air without the need to open windows. The system can be seamlessly integrated into Burgmann Aluminium aluminium and PVC-U window solutions, delivering an efficient and discreet ventilation concept for modern buildings.

Developed as a multi-functional, decentralised ventilation solution, the system meets the highest standards of energy efficiency, achieving heat recovery rates of up to 80% to significantly reduce energy loss while maintaining a comfortable indoor climate.

Thanks to its modular design with six different unit sizes, the system can be precisely adapted to individual ventilation requirements in residential properties or office buildings, making it ideal for both sophisticated new-builds and renovation projects.

Integrated air quality sensors enable demand-controlled operation, automatically regulating airflow for an optimal, user-focused indoor environment. At the same time, the system protects against draughts while effectively keeping insects and pollen out, ensuring year-round comfort and healthy indoor air quality.

Additional information

Max. air exchange rate

24 – 144

Additional face width

110 mm

Filter class of incoming air

G3 / optional F7for system basic depths

for system basic depths

70 – 120 mm

Dimensions (w x h x d)

(750-6000) x 110 x 345 mm
